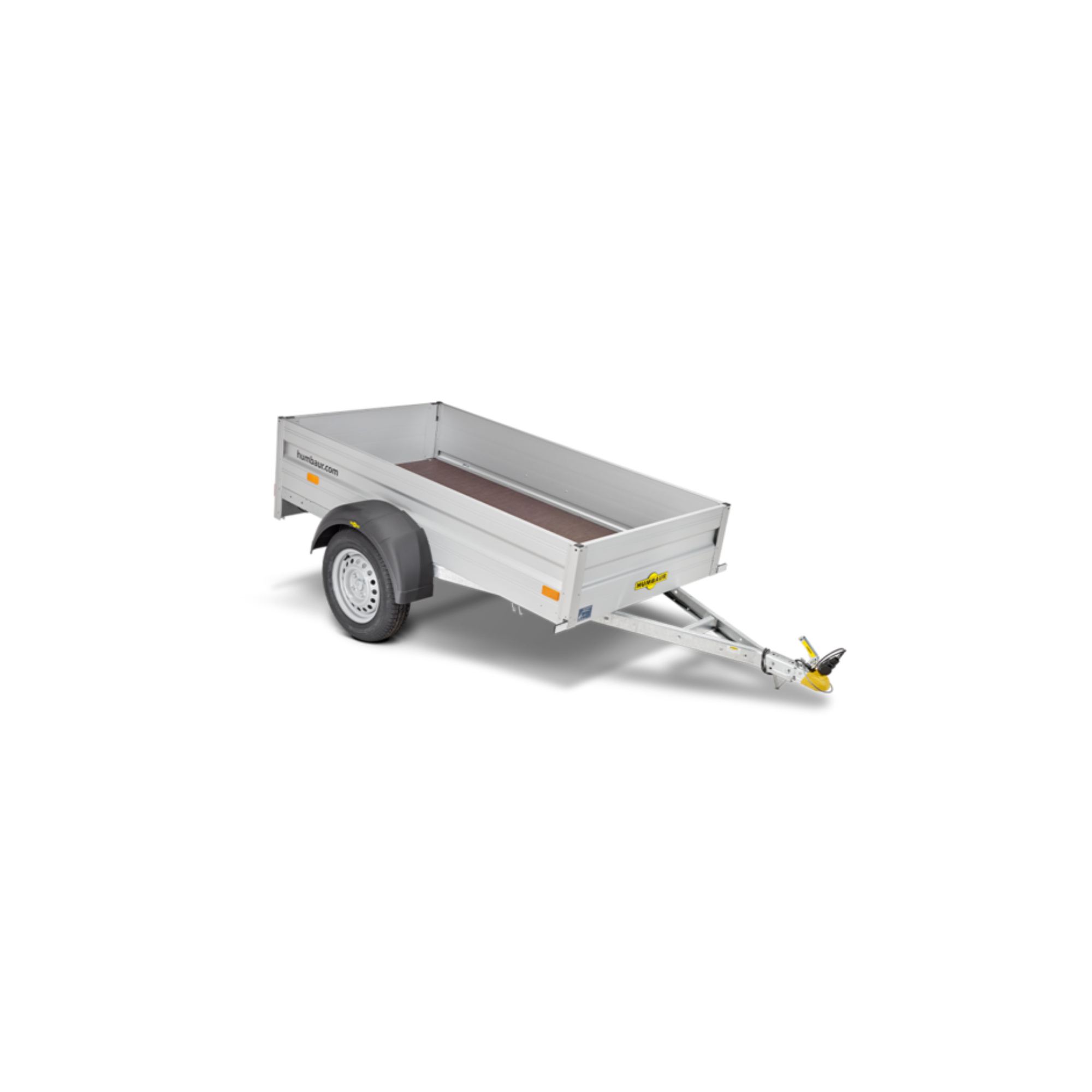

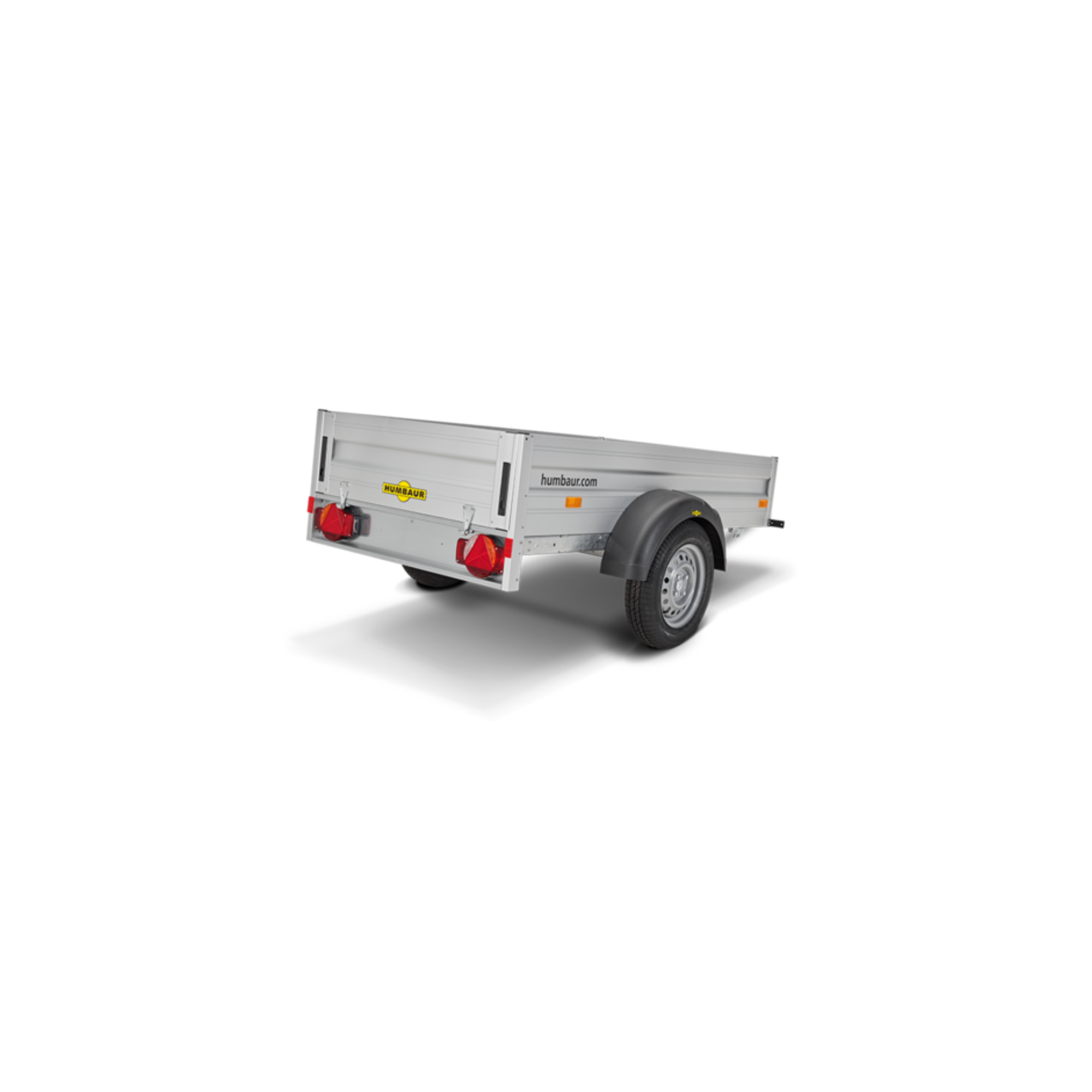

Humbaur Single-Axle Trailer HA 132513 KV – Aluminum Quality for Every Task

The Humbaur HA 132513 KV is a versatile single-axle trailer featuring a high-quality frame and side wall construction made of anodized aluminum – lightweight, corrosion-resistant, and durable. With a payload of 1,050 kg, a gross vehicle weight rating of 1,300 kg, and an interior length of 2,510 mm, it is ideal for trade, craft, gardening and landscaping, as well as private use.

Highlights

• Anodized aluminum frame & side walls: Robust, lightweight construction – corrosion-resistant and easy to maintain
• Special 15 mm wooden floor: Multiple waterproof bonded layers with anti-slip phenolic resin coating – safe and durable

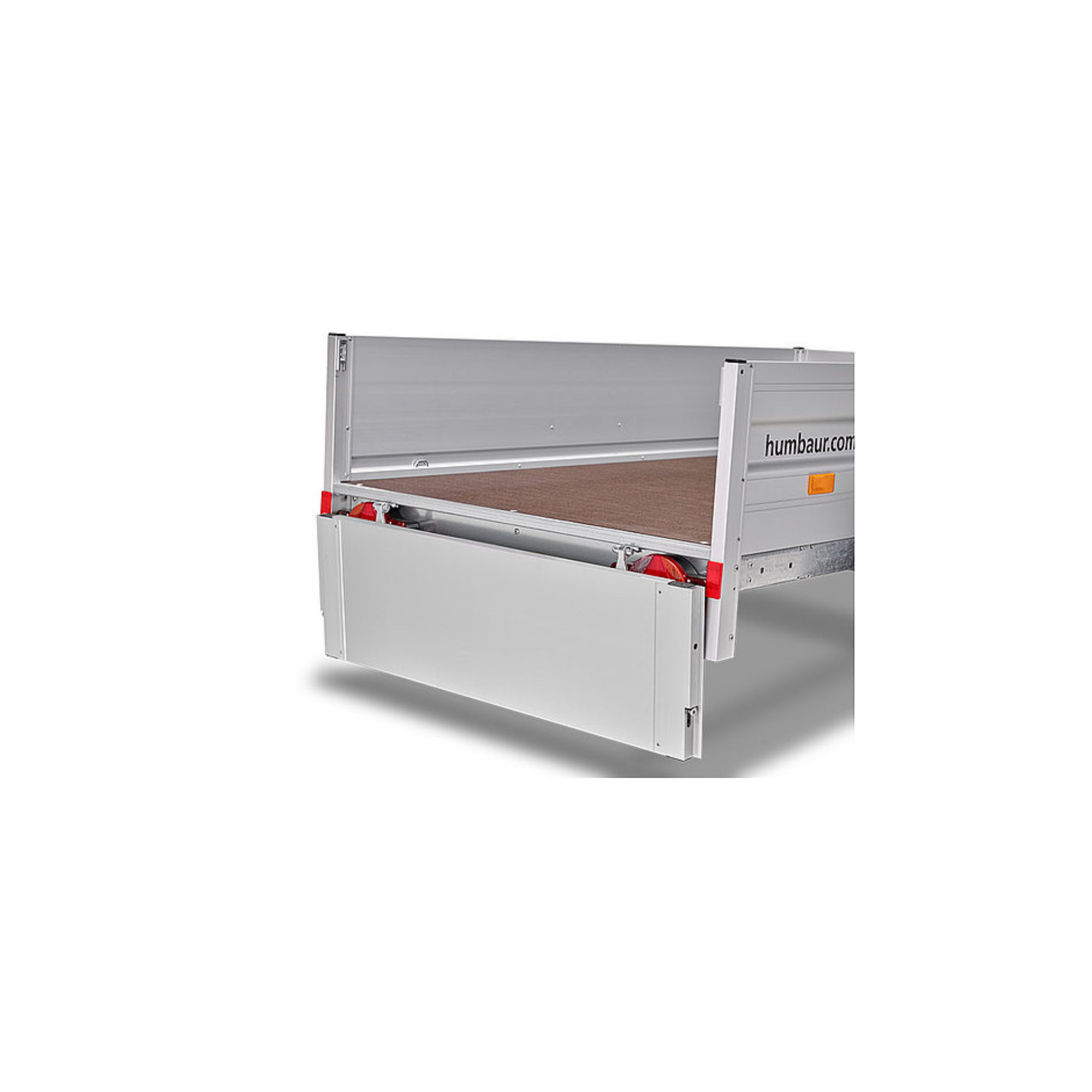

• Replaceable floor: Inserted into the side walls and easily replaceable – saves costs in case of wear

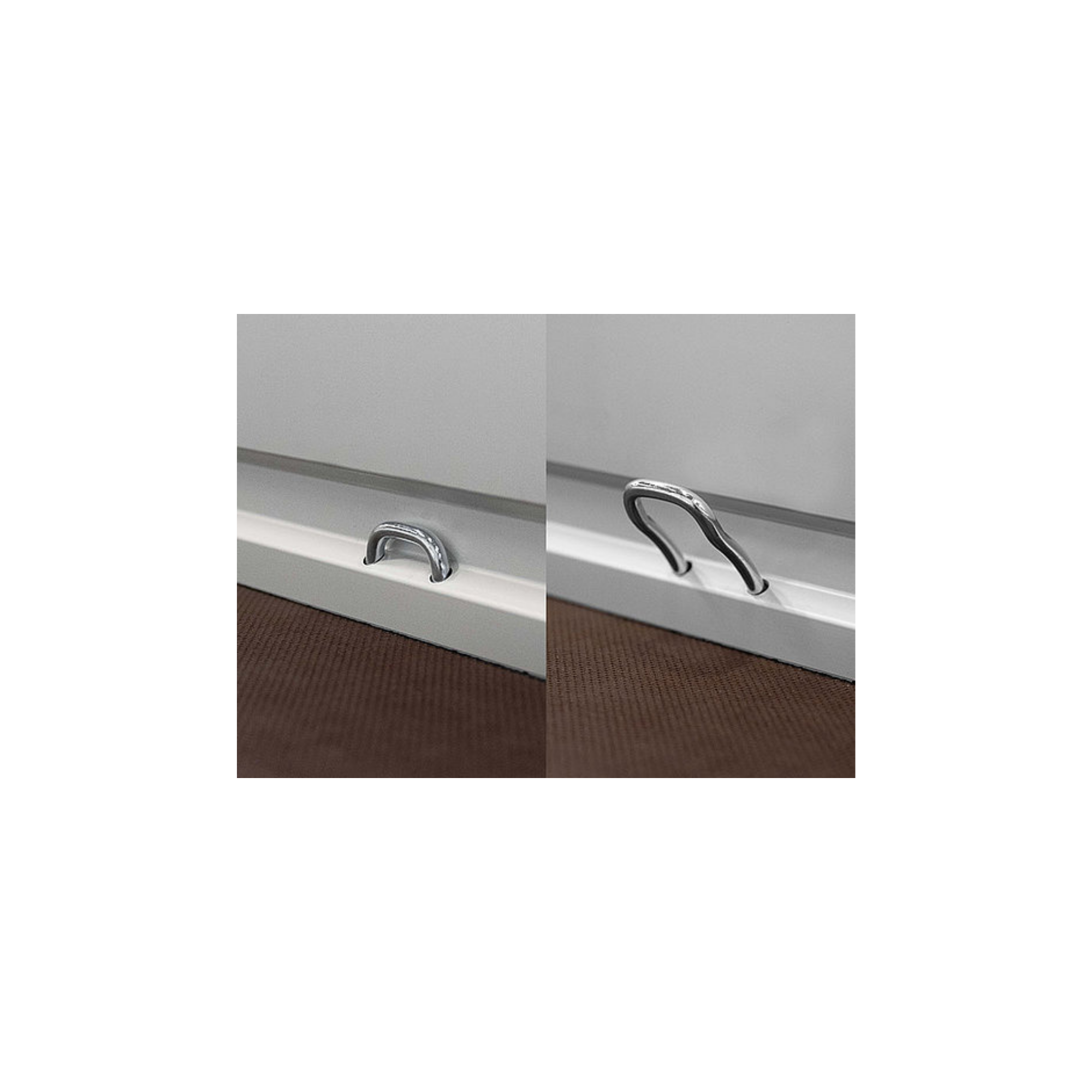

• 6 recessed lashing rings: 400 kg tensile force each, DEKRA-certified – for professional cargo securing according to legal requirements
• Hot-dip galvanized drawbars: Maximum corrosion protection for permanent outdoor use

Technical Data

• Model: Humbaur HA 132513 KV
• Type: Single-axle trailer / drop-side trailer
• Payload: 1,050 kg
• Gross Vehicle Weight (GVW): 1,300 kg
• Interior length: 2,510 mm
• Frame & side walls: Anodized aluminum
• Floor: Special wood 15 mm, phenolic resin coating
• Cargo securing: 6 lashing rings, 400 kg/each, DEKRA-certified

Which applications is the HA 132513 KV suitable for?

The Humbaur HA 132513 KV is ideal for:

• Gardening & Landscaping: Transporting soil, plants, lawnmowers, and garden tools
• Crafts & Trades: Material transport on construction sites, tools, and machinery
• Private use: Moving, bulky waste, leisure vehicles like quads or motorcycles
• Agriculture: Transporting produce, animal feed, or small equipment

Frequently Asked Questions about the Humbaur HA 132513 KV

How much can the Humbaur HA 132513 KV carry?
The trailer has a payload of 1,050 kg with a gross vehicle weight rating of 1,300 kg.

How long is the loading area of the HA 132513 KV?
The interior length is 2,510 mm – sufficient for long items such as ladders, pipes, or wooden beams.

What is the advantage of an anodized aluminum frame?
Anodized aluminum is particularly corrosion-resistant and scratch-proof due to an electrochemical process – significantly more durable than painted steel while being much lighter. This saves weight and increases payload capacity.

Are the lashing rings DEKRA-certified?
Yes – all 6 recessed lashing rings are DEKRA-certified and offer 400 kg of tensile force each for secure cargo restraint according to legal requirements.

Can I replace the trailer's floor?
Yes – the special wooden floor is designed to be easily inserted into the side walls and replaced without complication if necessary. This saves costs in case of wear.

Which vehicle do I need to tow the HA 132513 KV?
Your vehicle requires a towing capacity of at least 1,300 kg (GVW). Please check the vehicle registration document under entry O.1 or O.2. We are happy to provide personal advice.

What is the difference between a single-axle trailer and a tandem trailer?
A single-axle trailer like the HA 132513 KV has one axle and is more compact and lighter – ideal for payloads up to approx. 1,050 kg and tighter maneuvering areas. A tandem trailer has two axles and offers higher payloads and more stability for heavy transport.

Do I need a class BE driver's license for this trailer?
With a GVW of 1,300 kg, a class B driver's license is generally sufficient, provided the combination of vehicle and trailer does not exceed 3,500 kg. For precise information, we recommend consulting your local driver's licensing authority.

Scope of delivery

• Humbaur single-axle trailer HA 132513 KV
• Operating manual
